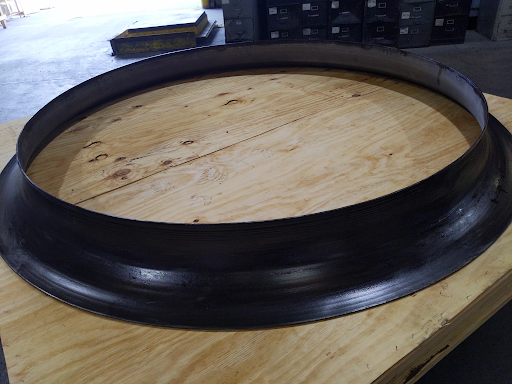

What Are Bellmouth Fittings?
Bellmouth fittings, commonly known as bellmouth reducers, are specially shaped piping components with a flared, rounded inlet that provides a gradual transition into a smaller pipe or equipment connection. Their smooth inlet geometry can help reduce flow separation, turbulence, and entrance pressure losses when properly designed for the application.
Bellmouth fittings are used in industrial piping, process equipment, intake systems, and other applications where efficient flow entry and customized dimensions are important.
Bellmouth Reducer Capabilities
Sweco offers custom-fabricated bellmouth reducers for industrial applications, fabricated to customer drawings and project specifications.
| Specification | Capability |
| Outside diameter (OD) | 12″ to 54″ |
| Materials | Mild carbon steel and stainless steel |
| Material thickness | 1/8″ to 1/4″ |
| Custom assemblies | Bellmouth reducers welded to pipes and elbows |
| Configurations | Custom profiles and dimensions based on project requirements |
Material grades, dimensional limits, thickness availability, and fabrication details should be confirmed with Sweco for each project.
How Sweco Fab Can Assist with Custom Fabrication
Sweco can review customer drawings and specifications to establish the required fabrication scope. Depending on the project, support may include:
- Custom dimensions: Inlet and outlet sizes, overall length, and bellmouth profile
- Material selection: Carbon steel or stainless steel, subject to grade and availability
- Integrated assemblies: Bellmouth reducers welded to pipes and elbows as specified
- Quality documentation: Inspection, testing, and documentation according to the agreed project requirements
Providing complete drawings and technical details helps clarify requirements and supports an efficient quotation process.
What to Include in Your Bellmouth Fabrication RFQ
To obtain an accurate quotation, equip Sweco Fab with:
- Drawings and dimensions: Inlet and outlet diameters, overall length requirement
- Material specification: Required material grade and thickness
- Connection details: Flange standards, facing, and piping or equipment interfaces
- Inspection requirements: Applicable testing, acceptance criteria, and documentation
- Quantity and delivery: Required quantity and target delivery schedule
A complete Request for Quotation (RFQ) helps minimize assumptions and allows the fabrication requirements to be evaluated efficiently.
Request a Quote for Custom Bellmouth Fittings
Selecting the right fabrication partner is essential for meeting project-specific dimensional, material, and installation requirements. Sweco supports industrial customers with custom-fabricated piping components and bellmouth reducer assemblies tailored to project specifications.
Need a custom bellmouth reducer for your next project? Visit Sweco Fab to request a quote, submit your drawings, or schedule a call with an engineer to discuss your fabrication requirements.
Note: All dimensions, material availability, and fabrication capabilities are subject to confirmation by Sweco Fab.
